Star Ceiling Panel

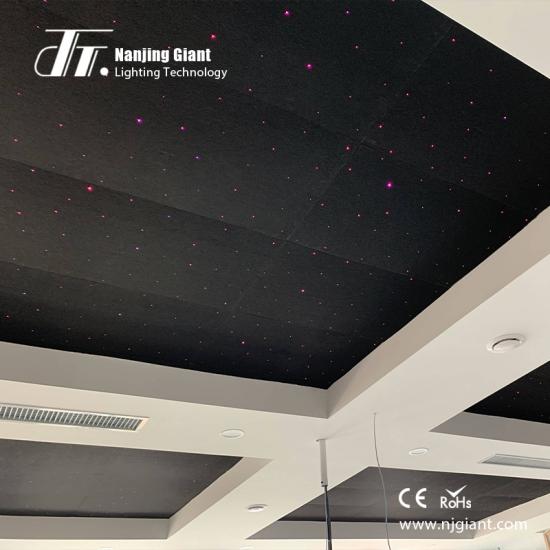

Hydra Starry Sky Ceiling Panel
Hydra system fiber optic lights is equipped with fireproof panel tiles optical fiber splitter optical joint carrier tails magnets. Panels come pre-fibred and backed and are a metre square,although custom sizes are available. Each panel is unique with its 100 stars laid out by hand.
  • Item NO.:GEP

  • Product Origin:JiangSu, China

  • Order(MOQ):8pcs

  • Main Material:PMMA end glow fiber optic

  • Power:27W

  • Lighting Colour:RGB

  • Remote Control:RF-Wifi/Bluetooth

  • Product Size:600*600*9mm

  • Application:Star ceiling for home theaters, bars, nightclubs, KTV or baby rooms

  • Share To :
New Products
Product Details


The modular fibre optic light ceiling kit simplifies the starlight ceiling installation process so you don’t have to deal with hundreds or thousands of long optical fibres. The modular kit is ideal for large-scale fibre optic star ceiling projects, such as home cinema rooms, nightclubs and bars. With this easy to install kit, you can create impressive starry sky ceilings.


The Modular kit was developed to simplify the fibre optic star ceiling installation process. Instead of dealing with hundreds of thousands of individual fibres, the conventional fibre optic bundle’s components are broken up into three elements:

The hydra connector attaches to the light engine’s connector port and the tails connect to the extension cables. The hydra connector tails are covered with black PVC and end in a male connector.


Our light engines come with various port diameters (18 mm, 20 mm, 29 mm, 30 mm), therefore we have developed a compatible hydra connector for each diameter. The larger the port diameter, the higher number of star points can be achieved (we usually recommend 50 - 100 fibres per square meter).

For traditional installation (light source + optical fiber), please contact customer service.

It would be helpful to have the following information ready for discussion:

  • Size of the star field (in square feet)
  • Star density (number of stars per quare foot)
  • Distance from the center of the room to the light source storage location
  • Ceiling type (Suspended or Drywall)

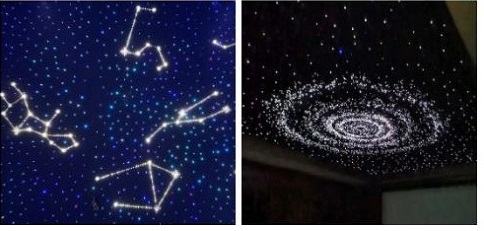

  • Star style (Normal or with planet etc.)

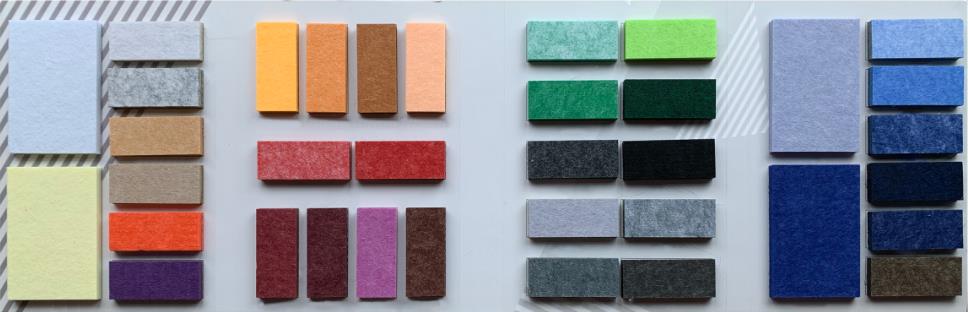

                                        Panel color select available.

                                        Black is the panel color that customers choose most.

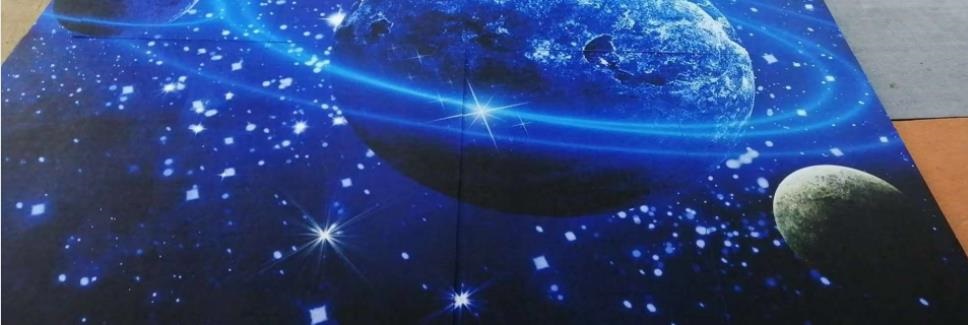

                                         Panel inkjet select available.

                                         Customers choose inkjet sound-absorbing panels under specific circumstances.

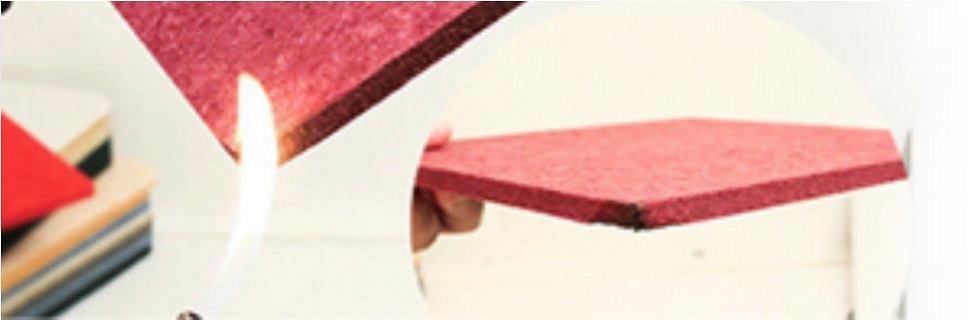

                                      Flame retardant select available.

                                        Acoustic panel is made of A1 grade raw material flame retardeant.It has a good fireproof effect.

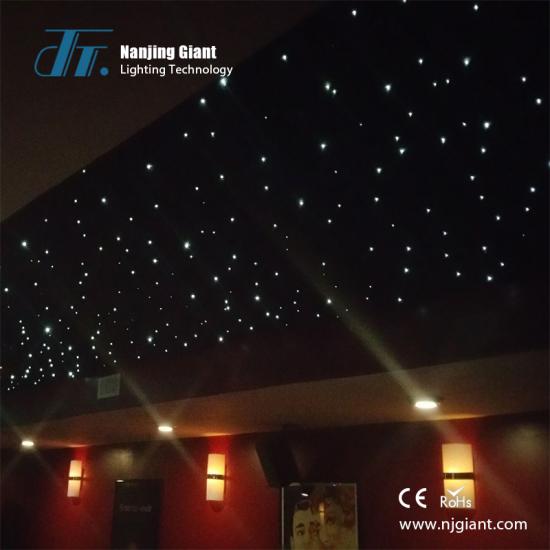

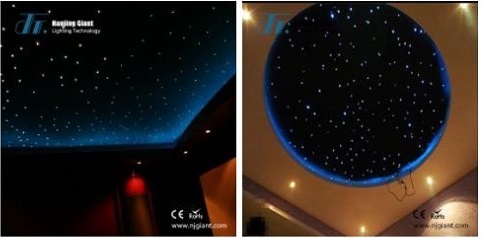

                               Product Pictures

                                                    Installation Instructions

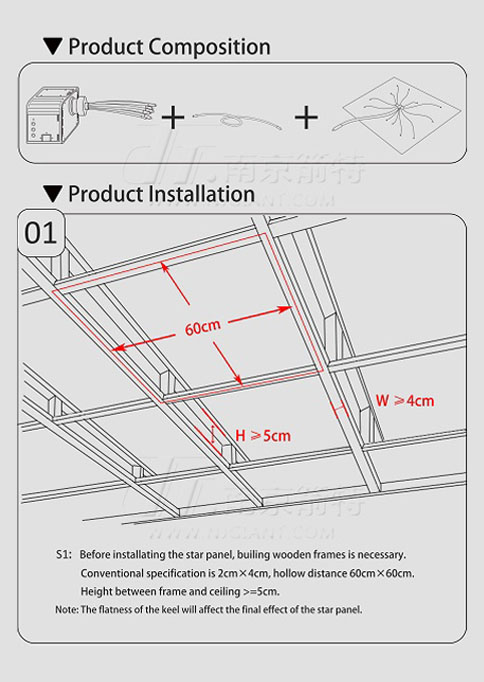

                                  STEP 1Before installating the star panel, builing wooden frames is necessary.

                                         Distance between frames 60cm*60cm.

                                         Height between frame and ceiling >=5cm.

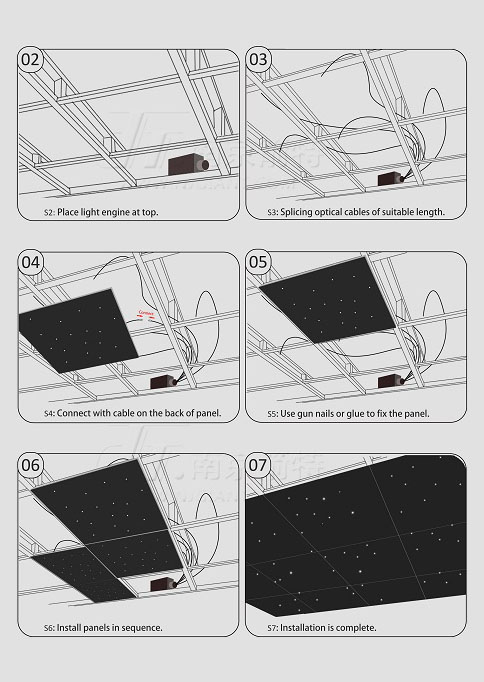

                                         STEP 2: Place light engine at top.

                                         STEP 3: Splicing optical cables of suitable length.

                                         STEP 4: Connect with cable on the back of panel.

                                         STEP 5: Use gun nails or glue to fix the panel.

                                         STEP 6: Install panels in sequence.

                                 Our Advantages

                                        Our: Symphony mode. Different color per Point.

                                        Others: Single color. Different color per Panel.

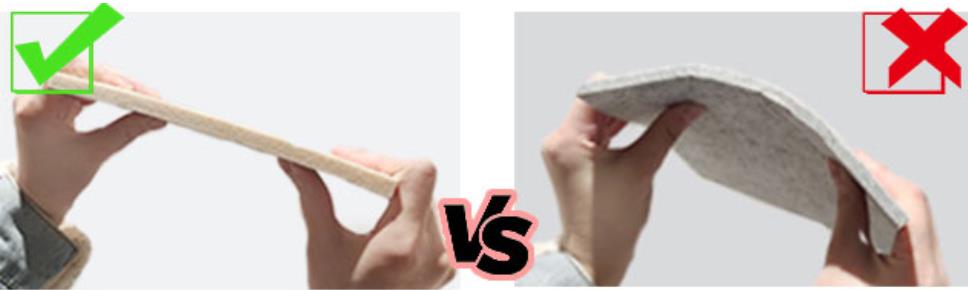

                                        Our: High-density polyester fiber board.

                                        Others: Thin and easy to deform.

                               Our Factory

Nanjing Giant Technology Co., Ltd. professionally makes and markets plastic optical fibers, glass optical fibers, optical fiber lamps, and various green lights & lamps, specializing in universal non-communication optical fibers. Our running mission: technology based and market oriented. Our quality products have been exported to Europe, the USA, Africa and the Middle East.


Q: What scenes are available?
A: Mainly used in: hotels, restaurants, nightclubs, shopping malls, scenic spots, home interiors, etc.

Q: How long is the warranty?
A: One year.

Q: How to install?
A: The installation is simple, please contact customer service for installation drawings.

Q: Can it be customized?
A: Yes, contact customer service to customize different patterns, sizes, light-emitting patterns, fiber lengths, etc.

Q: Are there samples?
A: Contact customer service to put forward your request.

Q: How long is the delivery period and how long will it take to receive it?
A: Generally it can be completed in about two weeks, depending on the customized product. If the customized pattern is complicated, it may be postponed.

Q: How about after-sales?
A: If there is a problem, we will provide replacement parts.
